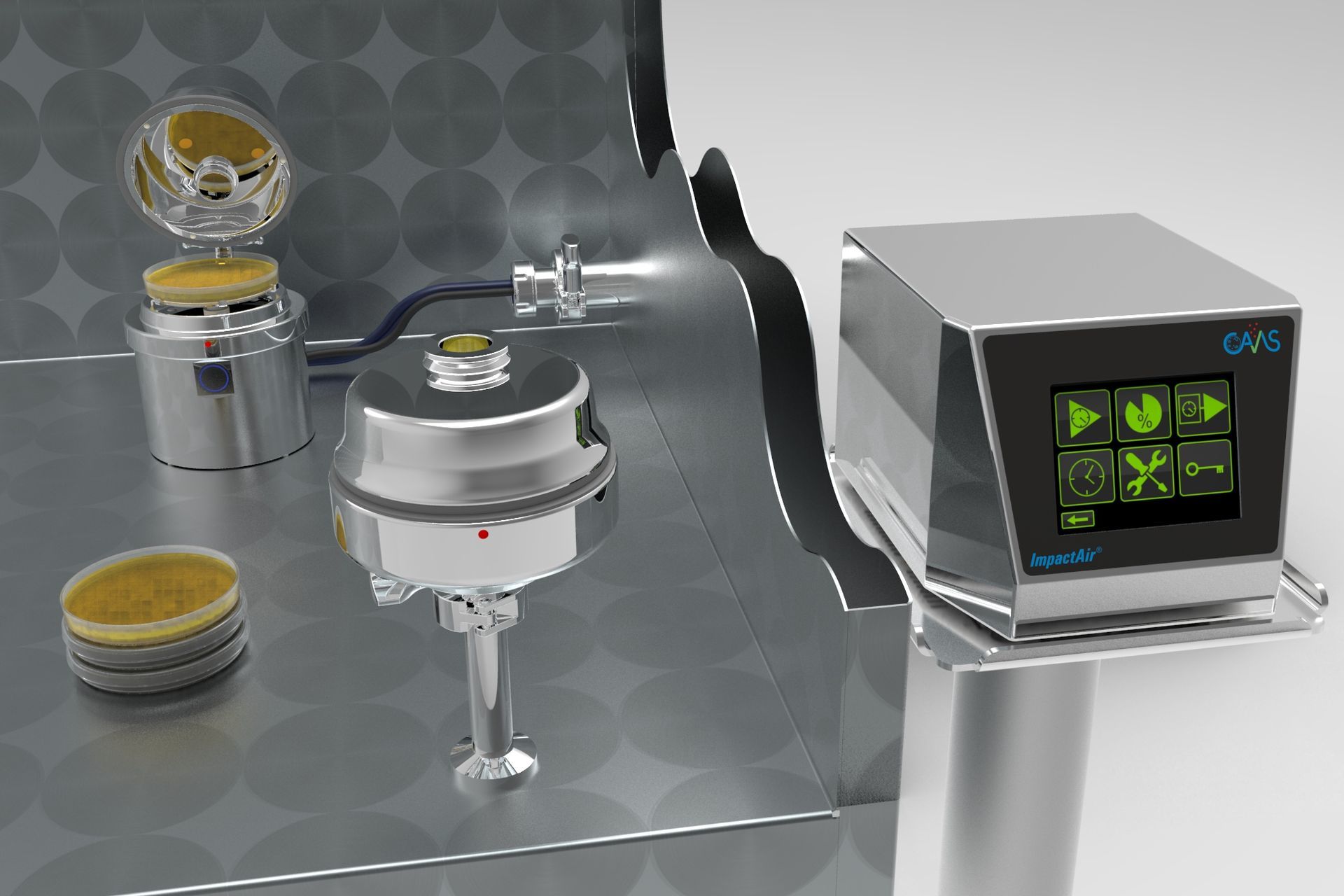

ISO-CON-90 - Complete Monitoring System

The ISO-CON-90 system is a complete turnkey monitoring solution for isolators. The system comprises an ISO-90 monitoring head plus an ISO- CON flow control unit. The ISO-90 head occupies minimal space within the isolator by keeping the pump and control unit separate and away from the head. The ISO-CON has a touchscreen display with the familiar CAMS intuitive user interface.

A powerful built-in vacuum pump ensures smooth running of the ISO-90 head at distances of up to 10+ metres away making it possible to locate the ISO-CON away from the head in a more convenient location. The exhaust is via the base of the ISO- CON passing through a H14 HEPA filter.

The ISO-CON is used to set up the run parameters (time, % plate, delayed start, username and location) and also store run results for upload to a LIMS system. Communication is by means of USB or Ethernet, with the Ethernet enabling the ISO-CON to communicate via MODBUS into a software system such as SCADA.

A secondary remote screen is available for mounting on or close to the isolator whilst allowing the ISO-CON to be located away from the process environment. A control cable and hose connects the ISO-90 head to the ISO-CON and special glands/ports are available from CAMS designed to fit onto a standard 11⁄2” Tri-Clover fitting as shown here.
